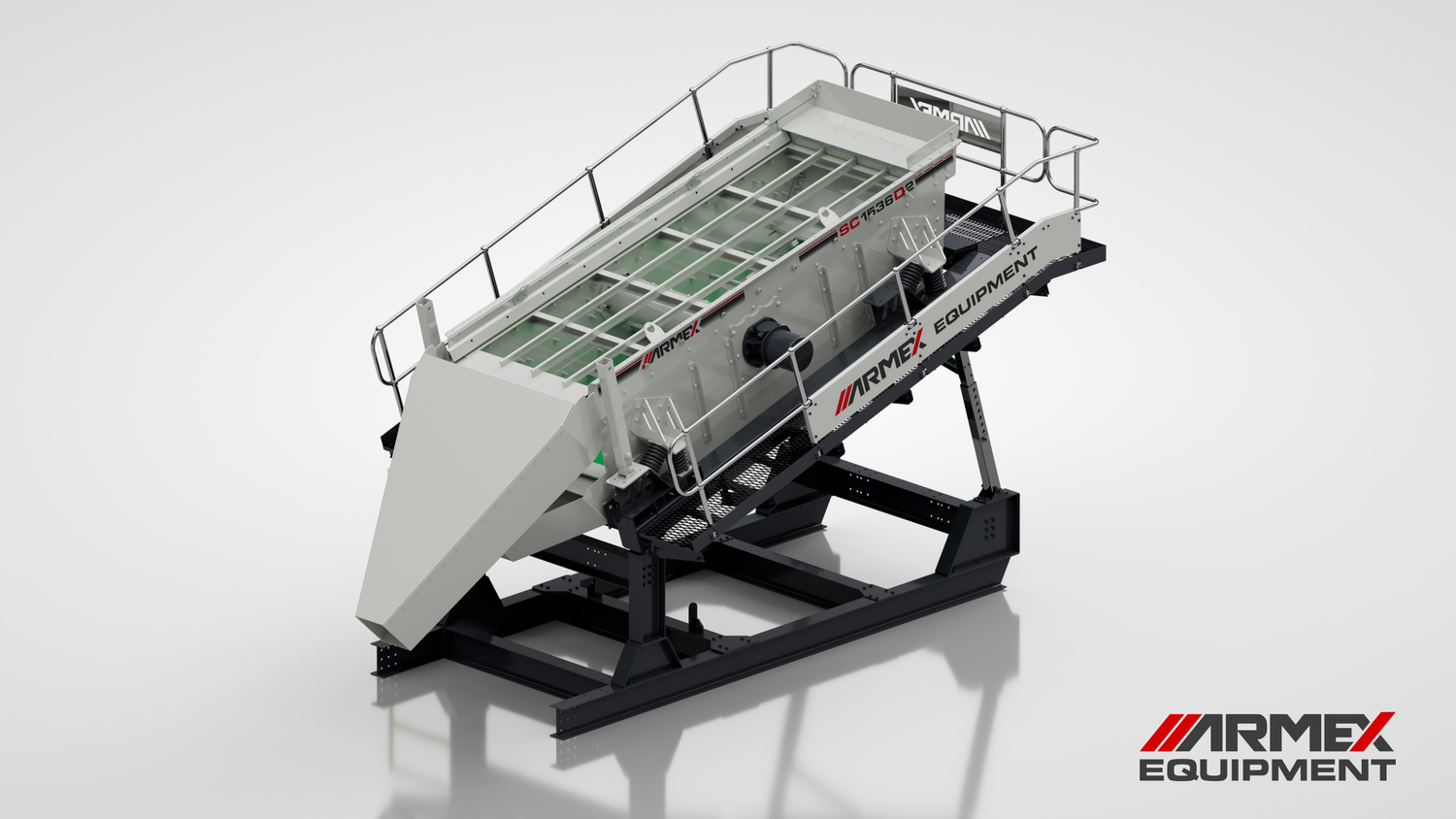

The ARMEX SC1536D2 is a double-deck inclined vibrating screen engineered for primary and secondary screening of aggregates, sand and mineral products in the most demanding African operating environments. Built on a heavy-duty welded chassis with twin independent vibrator motors and a synchronised prop shaft drive, the SC1536D2 delivers consistent circular motion screening across a 5.4 m² total screening area — producing three separated product fractions in a single pass.
Designed for simplicity, durability and low cost of ownership, the SC1536D2 is the practical choice for quarrying, mining and aggregate operations where uptime and throughput reliability are non-negotiable. Backed by a one-year warranty and built to handle the toughest African site conditions, the SC1536D2 is ready to work from day one.
| Performance | |
| Typical Throughput | 200 tph |
| Maximum Throughput | 300 tph |
| Typical Feed Size | 0–100 mm |
| Maximum Feed Size | 150 mm |
| Bulk Density Range | 0.8–2.0 t/m³ |
| Moisture Content | 0–10% |
| Product Discharge | |
| Number of Products | 3 |
| Product 1 | Top Deck Oversize |
| Product 2 | Bottom Deck Oversize |
| Product 3 | Bottom Deck Undersize |
| Screen Box | |
| Screen Size | 1 500 × 3 600 mm |
| Number of Decks | 2 |
| Total Screening Area | 5.4 m² |
| Screen Motion | Circular Motion |
| Stroke Range | 4.5–6.0 mm |
| Operating Speed | 960 RPM |
| Operating Frequency | 16 Hz |
| Screen Angle | |
| Angle Range | 16°–25° Adjustable |
| Standard Operating Angle | 18° |
| Screen Media | |
| Top Deck | Side Tension |
| Bottom Deck | End Tension (Piano Wire Compatible) |
| Spring System | |
| Spring Type | Helical Coil Springs |
| Quantity | 8 Springs |
| Static Compression | 30 mm |
| Operating Compression | 40 mm |
| Drive System | |
| Drive Arrangement | Twin Independent Vibrator Motors |
| Motor Quantity | 2 |
| Motor Size (each) | 3.7 kW |
| Total Installed Power | 7.4 kW |
| Synchronisation | Prop Shaft |
| Electrical Supply | 380–415 V, 50 Hz |
| VSD | Optional |
| Electrical Control Panel | Optional |
| Structure | |
| Chassis | Heavy-duty welded chassis |
| Walkways | Foldable with welded mesh flooring |
| Guarding | Guarded drive components (standard) |
| Paint System | Epoxy-based primer and top coat |
| Access Ladders | Optional |
| Trailer Mounted Version | Optional |
| Warranty | |
| Warranty Period | 1 Year (T&Cs apply) |
| Operating Dimensions | |
| Overall Length | 6 650 mm |
| Overall Width | 3 575 mm |
| Overall Height | 3 810 mm |
| Operating Weight | 5 500 kg |
| Transport Dimensions | |
| Transport Width | 3 000 mm |
| Transport Height | 3 000 mm |
- Hard Rock Quarrying
- Sand & Gravel Processing
- Aggregate Production
- Run-of-Mine Scalping
- Mineral Classification
- Recycling & C&D Waste
- Industrial Minerals
- Contractor & Portable Plants
- Granite & Dolomite
- Iron Ore & Manganese
- River Rock & Gravel
- Sand & Soil
- Recycled Concrete
- C&D Waste
- Coal & Industrial Minerals
The SC1536D2 accepts the full range of modern screening media, allowing configuration for sticky or abrasive, coarse or fine separations without structural modification.
One-Year Warranty — All ARMEX SC1536D2 units are covered by a one-year warranty on manufacturing defects and structural integrity, subject to standard terms and conditions.
The SC1536D2 is designed for quarrying, mining, recycling and aggregate applications and built to handle the rigours of continuous operation in demanding African environments. Spare parts availability and after-sales support are available through ARMEX Equipment.
