Specification Sheet
Double-Deck Inclined Vibrating Screen
SC1536D2
Modular Inclined Vibrating Screen
300tph
Max Throughput
5.4m²
Screen Area
3
Products Out

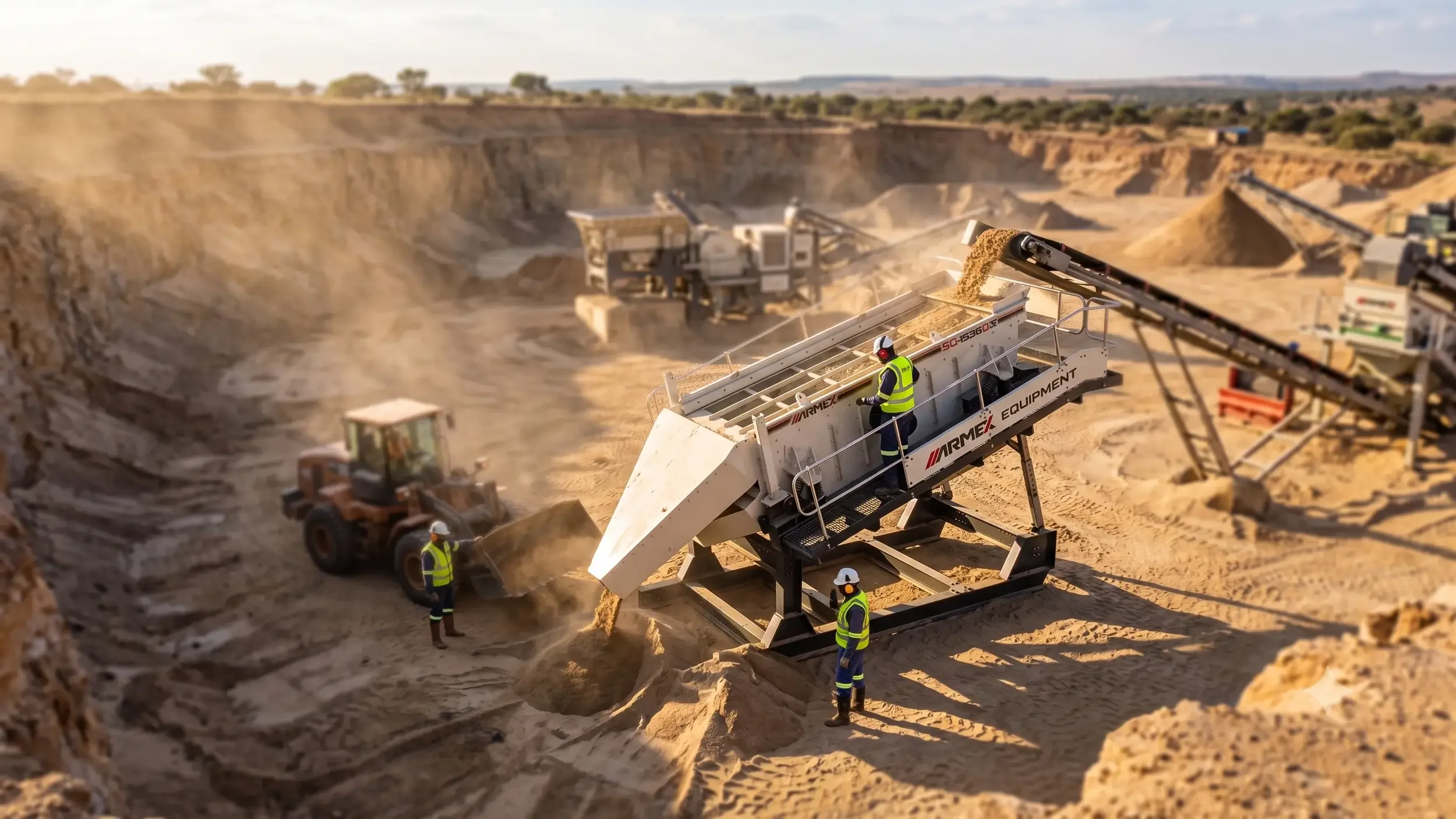

Field Application

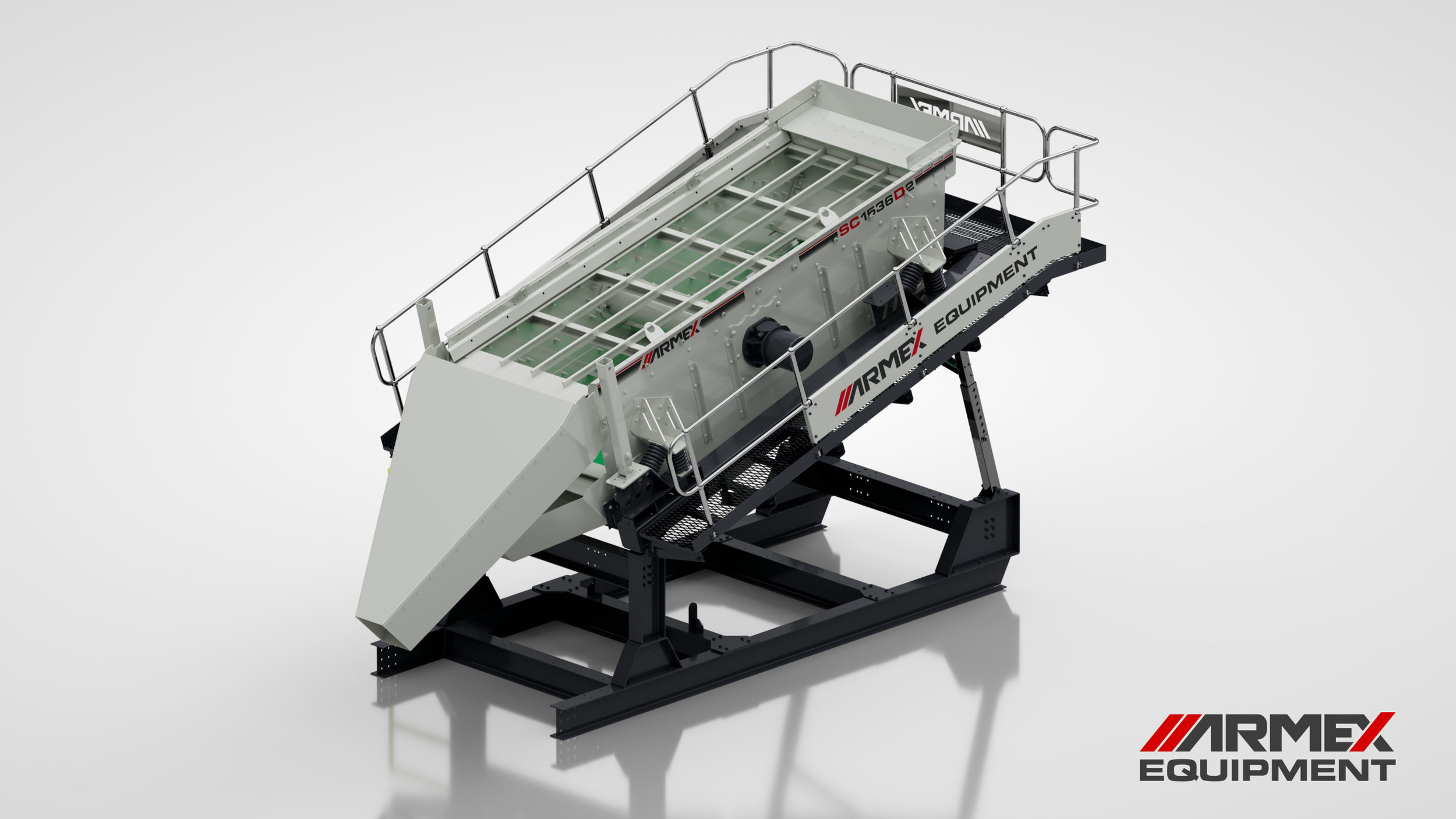

Isometric View — Front Left

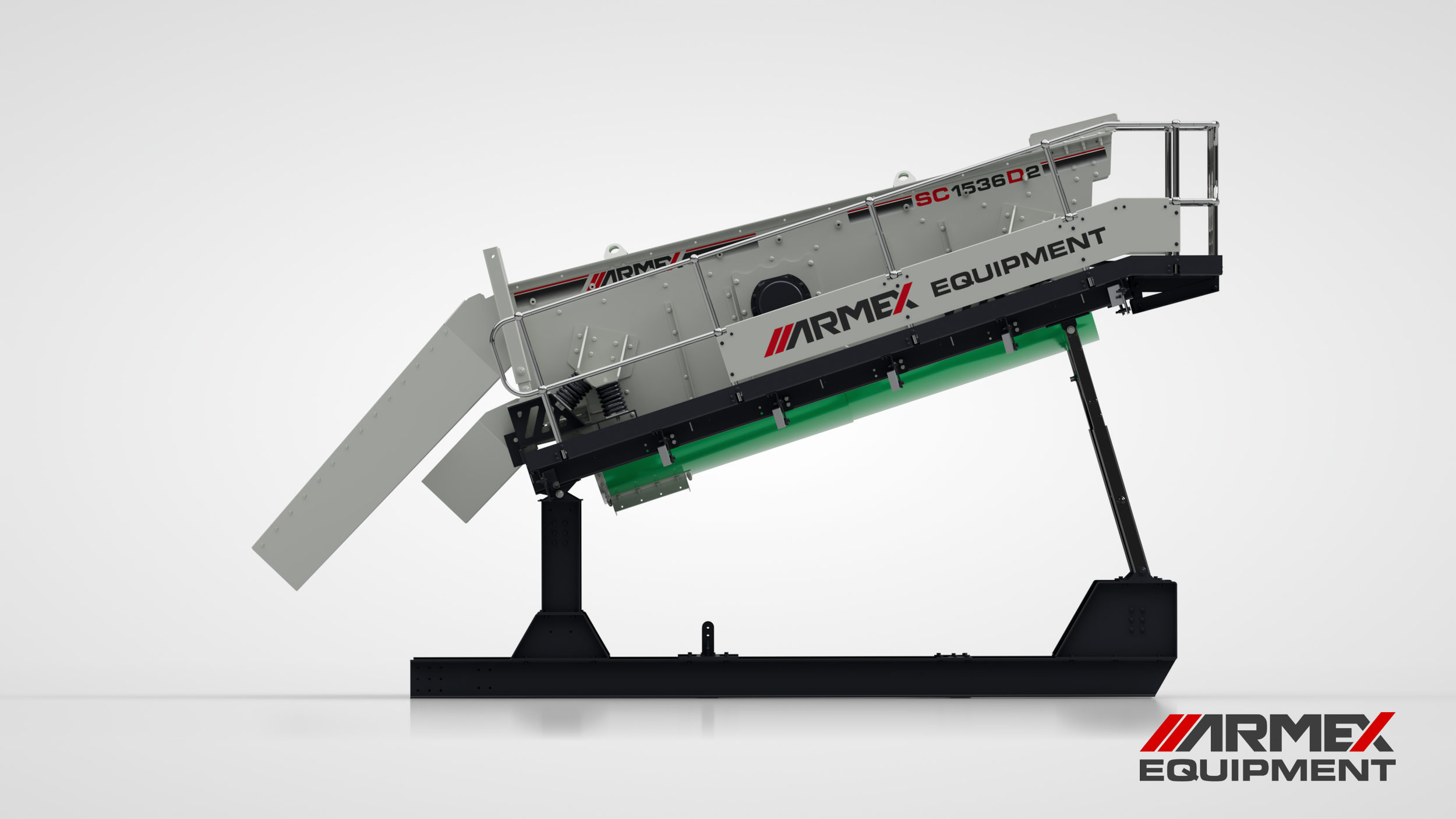

Side Elevation

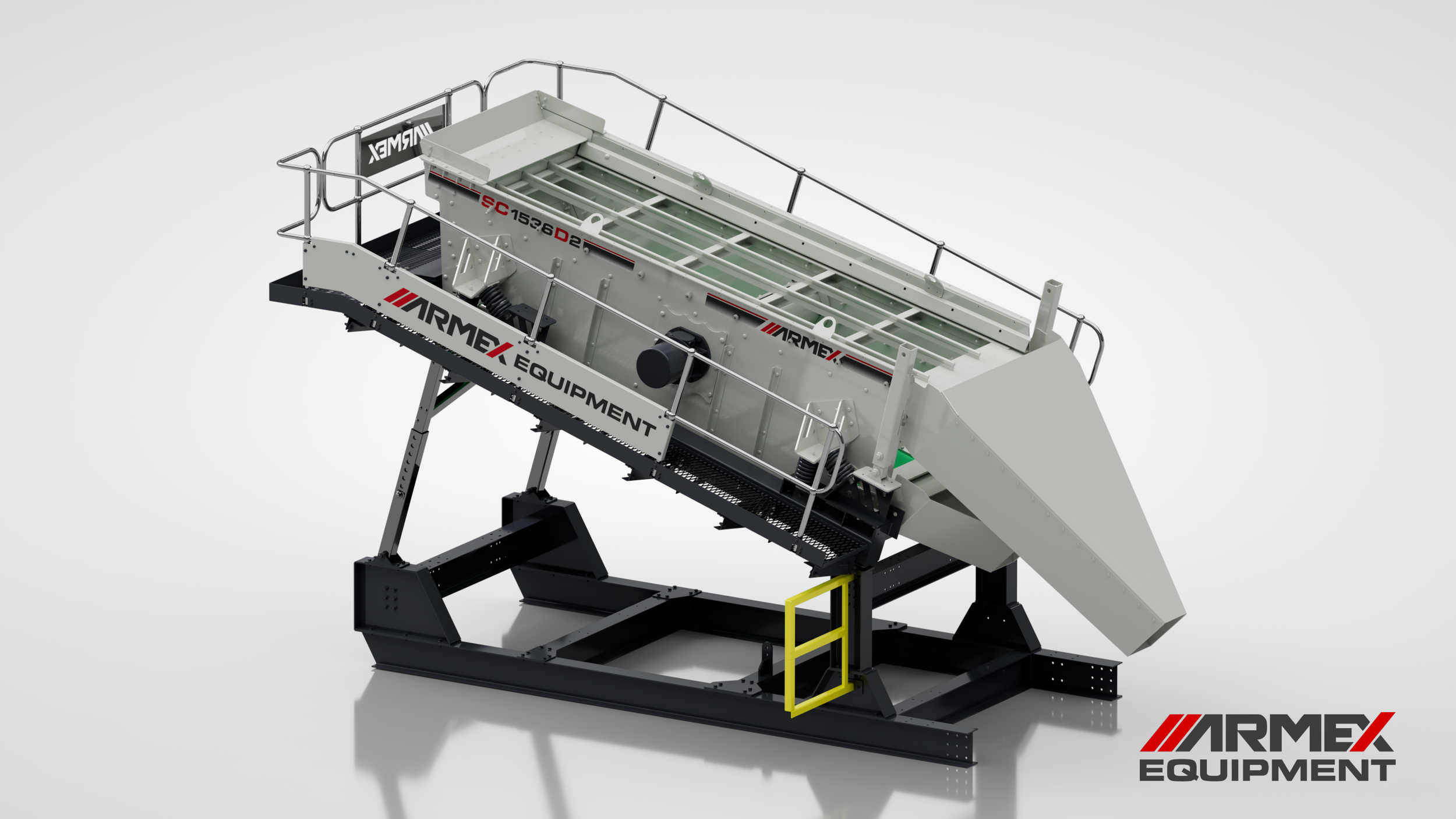

Render 3

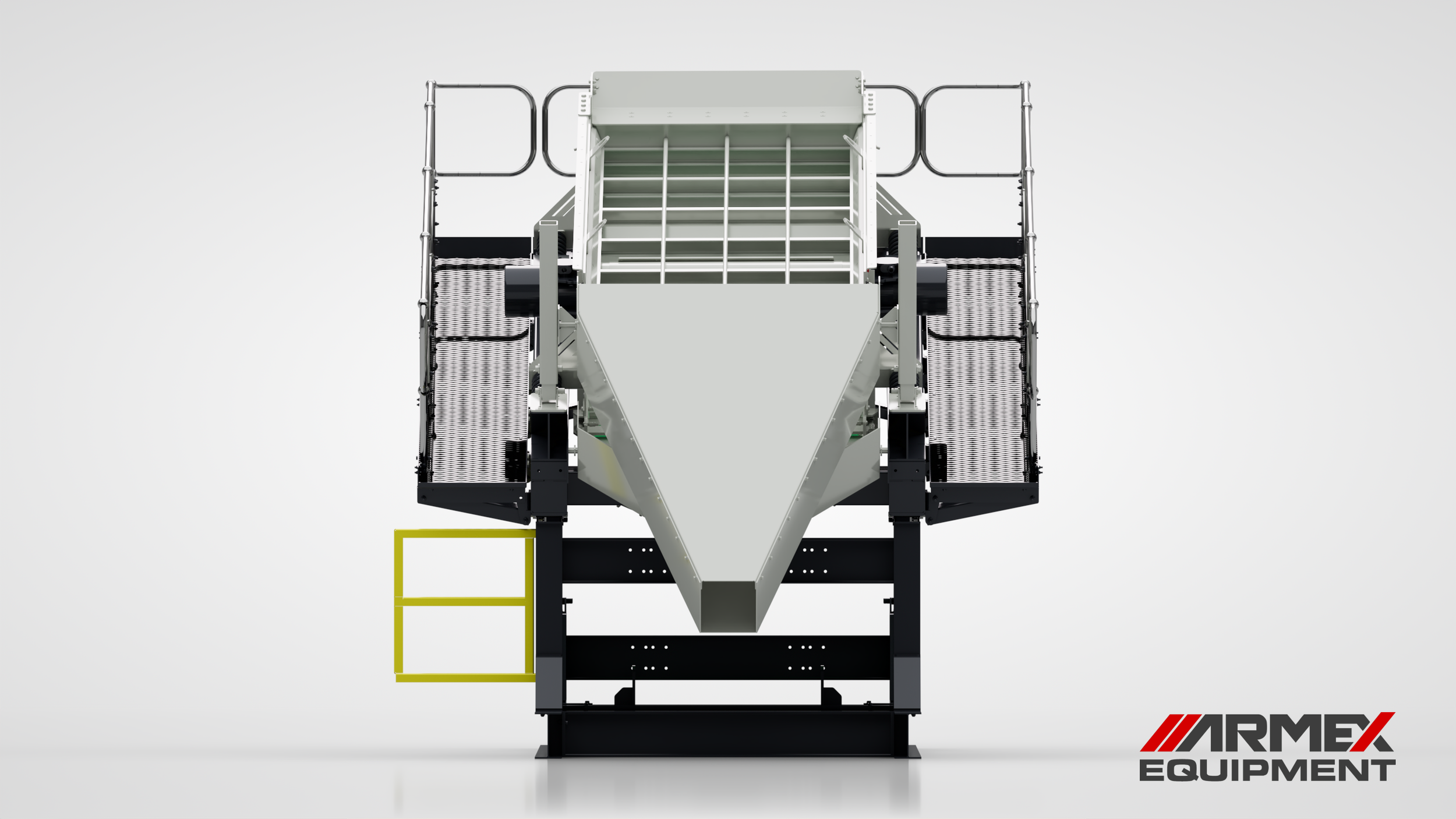

Render 4

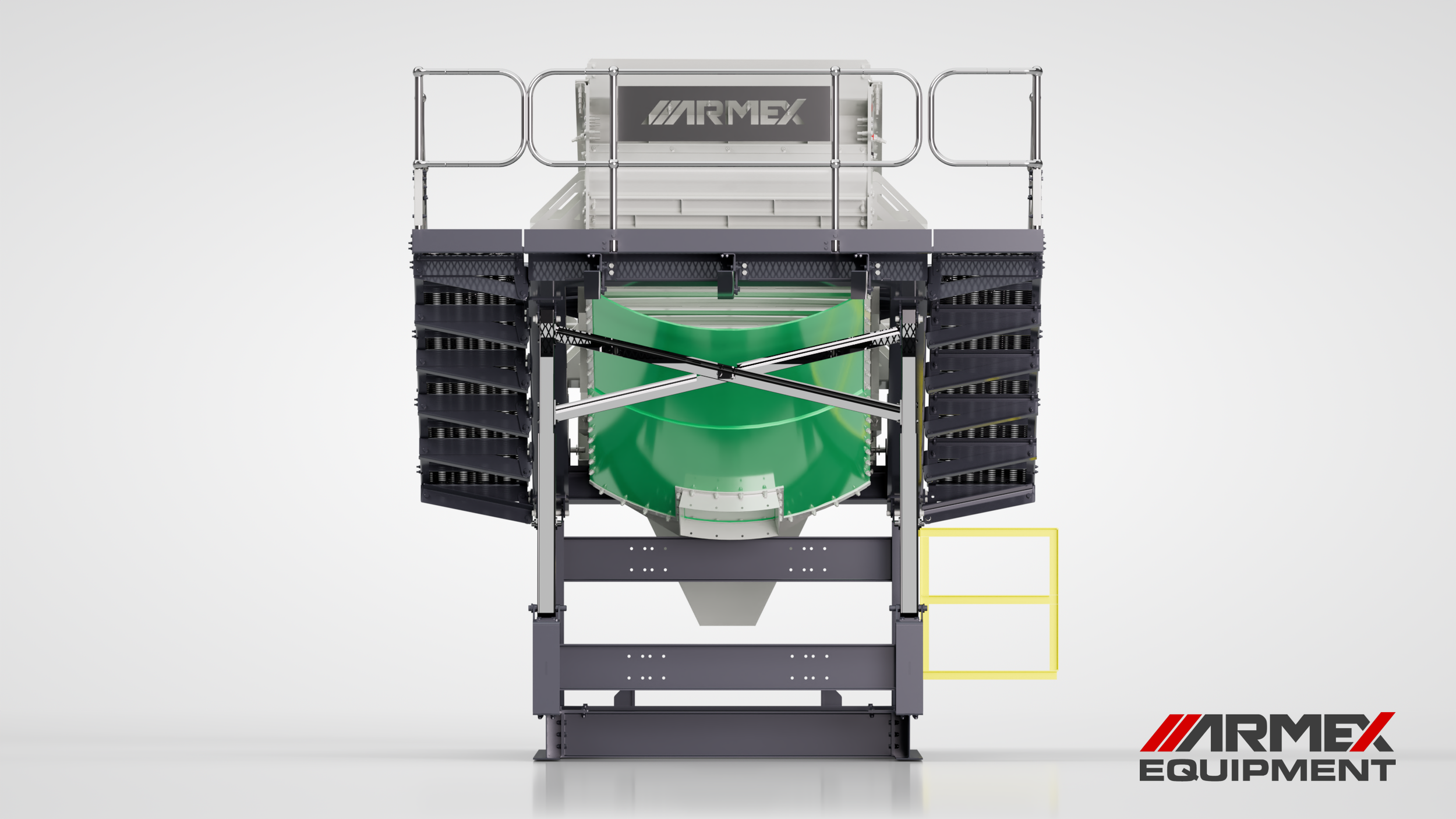

Render 5

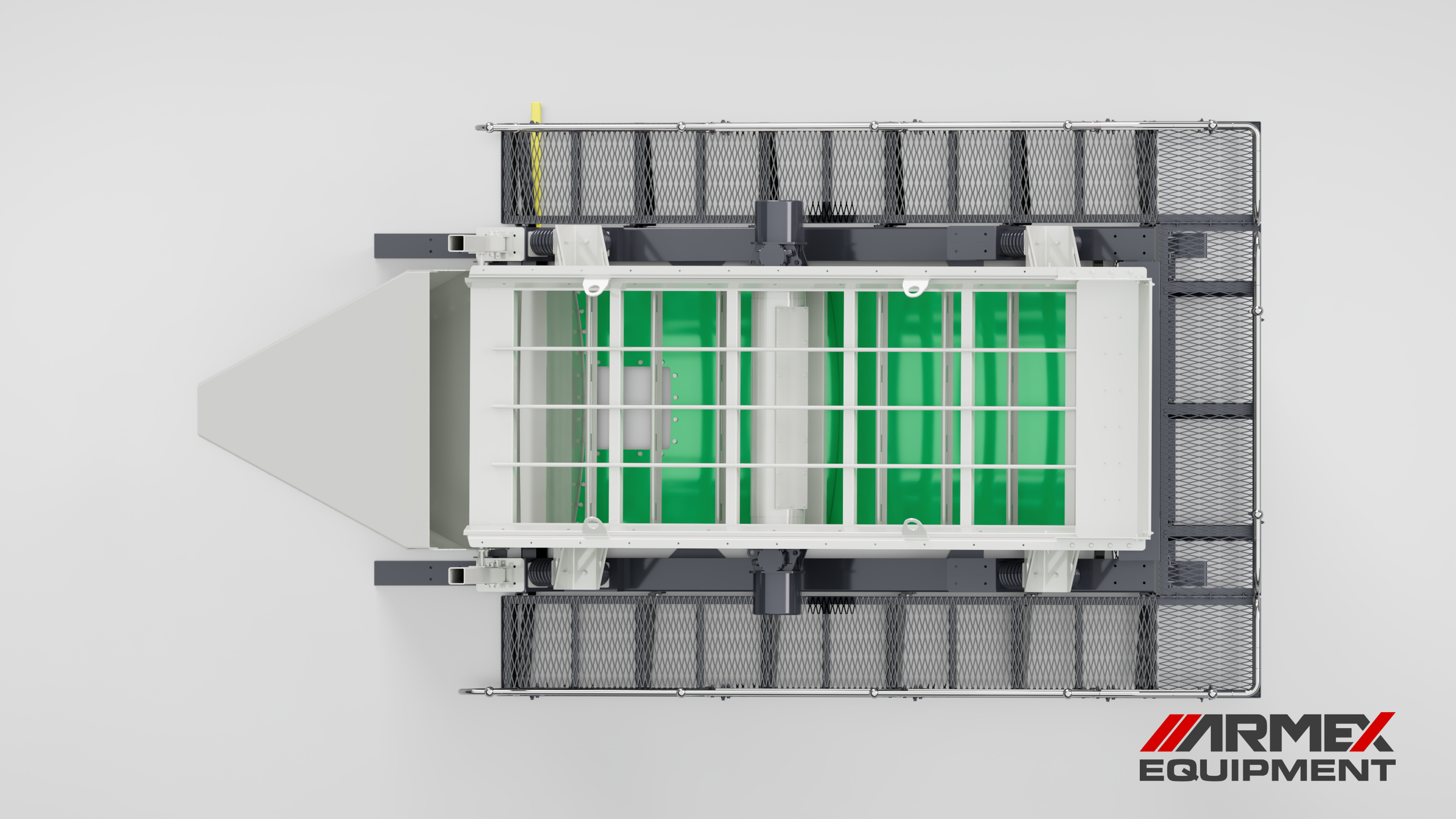

Render 6

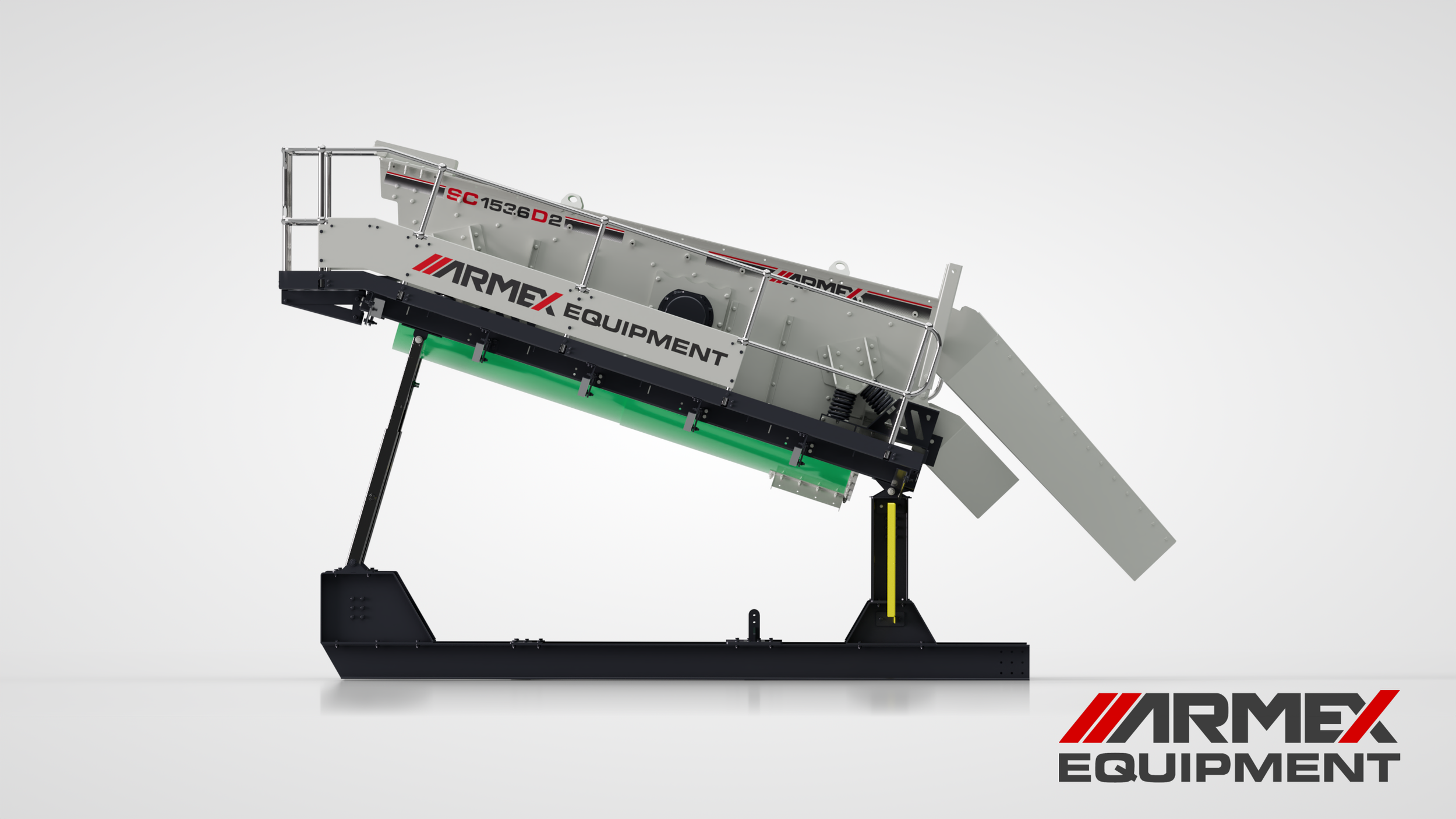

Render 7
Product Overview
Robust Design for Tough Environments
The ARMEX SC1536D2 is a heavy-duty, modular double-deck inclined vibrating screen engineered for maximum throughput and reliability. Designed to handle varying moisture levels and difficult materials, it delivers consistent screening performance across aggregate, sand, topsoil, and organics operations.
Key Advantages
Why Choose the SC1536D2
Pragmatic Engineering
We prioritise structural durability and mechanical simplicity over over-complicated electronic sensors that fail in harsh, dusty operating conditions.
Off-The-Shelf Spares
Built using high-quality, standardised components that you can easily source from local industrial hardware suppliers.
Reduced Downtime
Engineered for ease of maintenance to drastically decrease unscheduled downtime and lower your long-term total cost of ownership.
Technical Data
Specifications
| Machine Details | |
| Operating Angle | 15° - 20° Adjustable |
| Vibration Amplitude | 8 - 12 mm |
| Max Feed Size | 200 mm |
| Deck Configurations | |
| Top Deck Dimensions | 1.5m x 3.6m |
| Bottom Deck Dimensions | 1.5m x 3.6m |
| Media Types | Woven Wire, Polyurethane, Rubber |
| Motor & Drive | |
| Motor Power | 15 kW / 20 HP |
| Drive Type | V-Belt Drive |
| Operating Speed | 800 - 1000 RPM |
Design Elements
Standard Features
Huck-bolted construction for maximum fatigue resistance
Adjustable eccentric weights to tune stroke amplitude
High-clearance decks for easy screen media changes
Heavy-duty coil springs for superior isolation
AR lined feedbox and discharge lips for wear protection
V-belt drive system with pivoting motor base
Versatility
Field Applications
Primary Sectors
- Mining & Quarrying
- Sand & Aggregate Washing
- Topsoil & Organics
- Construction & Demolition Waste
Material Handled
- Crushed Stone
- River & Plaster Sand
- Compost & Biomass
- Gravel & Coal
Customisation
Screen Media Options
Woven Wire Mesh
Standard
Polyurethane Panels
Optional
Rubber Tensioned Mats
Optional
Self-Cleaning Wire
Optional
Footprint
Physical Dimensions
Overall Length
4.2m
Overall Width
2.1m
Overall Height
1.8m
Total Weight
3,200kg
Commitment to Quality
Standard Warranty
Every ARMEX SC1536D2 is backed by a 12-month / 2,000-hour structural and mechanical warranty. We stand by our pragmatic engineering and use of standard off-the-shelf components, ensuring that if you do need support, downtime is kept to an absolute minimum.
